Technical Specifications
General & Performance
| Powered by | Diesel engine, 3 cylinders, 43 hp |
|---|---|
| Drive System | Four-wheel drive (4WD) |
| Power Transmission | Hydraulic to all four wheels |

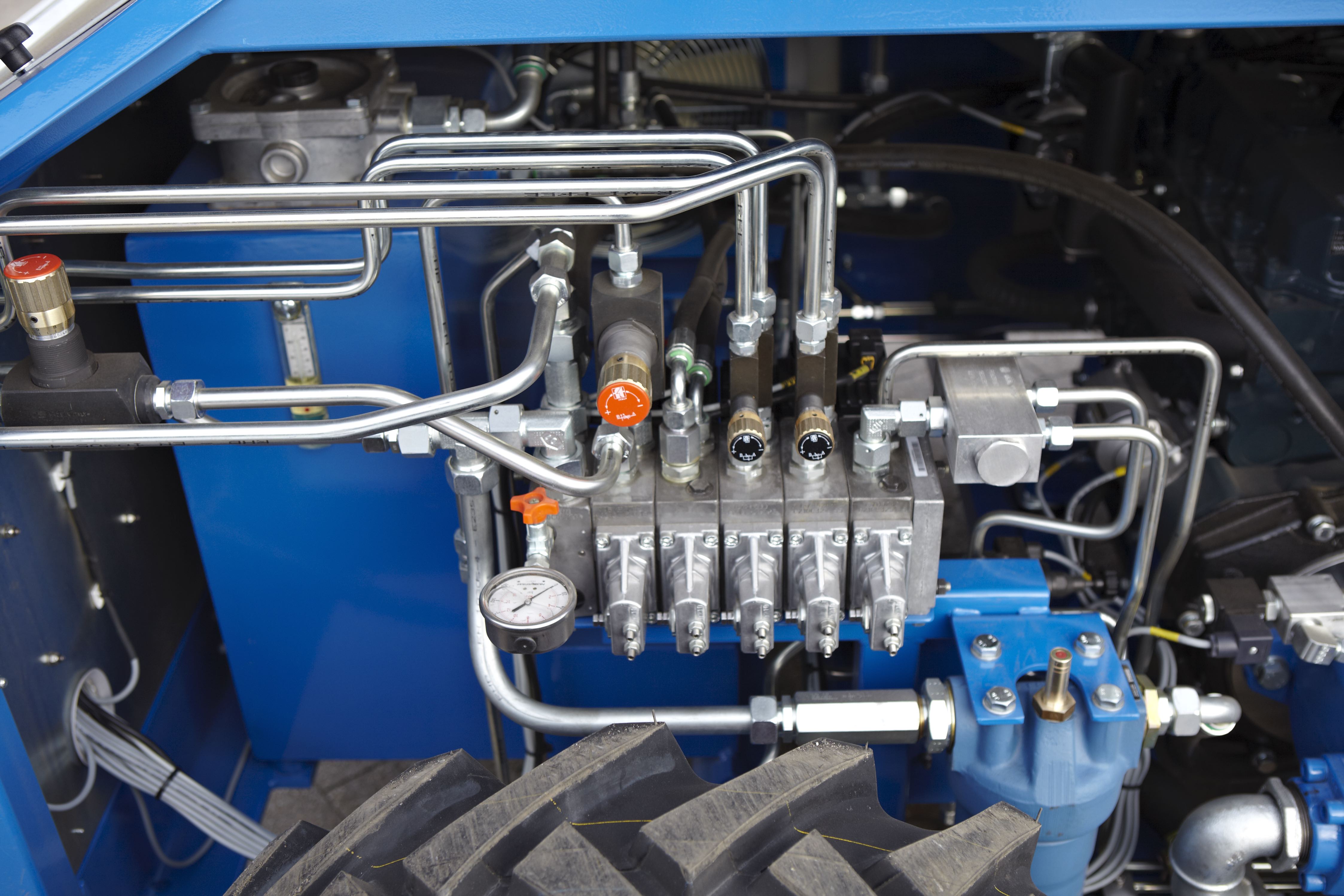

| Hydraulics | Sauer-Danfoss |
| Gearbox | Hydraulic |
| Steering | Remote-controlled (Radio controlled) |
| Scanning Range | Up to 24 m |
Dimensions & Weight
| Chicken Cat Weight | Approx. 2,600 kg |
|---|---|
| Trailer Weight | Approx. 800 kg |
| Transporter Length | 9,300 / 10,100 mm |
Component Details
| Component | Dimensions | Implementation / Material |
|---|---|---|
| Collecting-head System | Length: 1,400 mm Width: 1,350 mm |
Undercoating 1x, Lacquer 2x (Dark Blue) |
| Conveyor System | Length: Max 9,500 mm / Min 5,900 mm Width: 800 mm (Belt: 350 mm PVC) |
Material V2A – Stainless steel (Unpainted) |

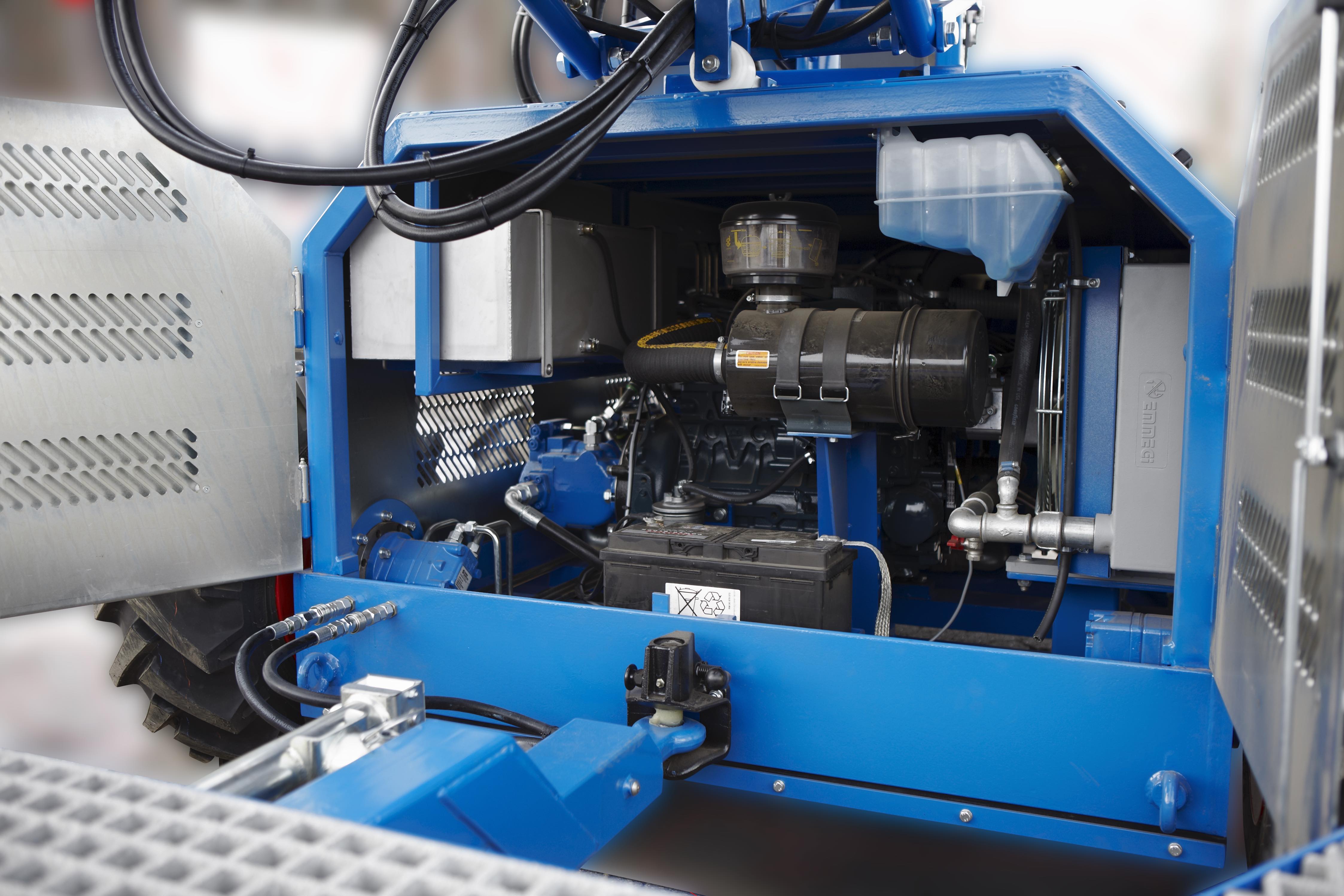

| Power Unit | Length: 1,670 mm Width: 1,450 mm |
Undercoating 1x, Lacquer 2x (Dark Blue) |
| Container Filling System | Length: 2,440 mm Width: 585 mm (Belt: 400 mm PVC) |
Material V2A – Stainless steel (Unpainted) |

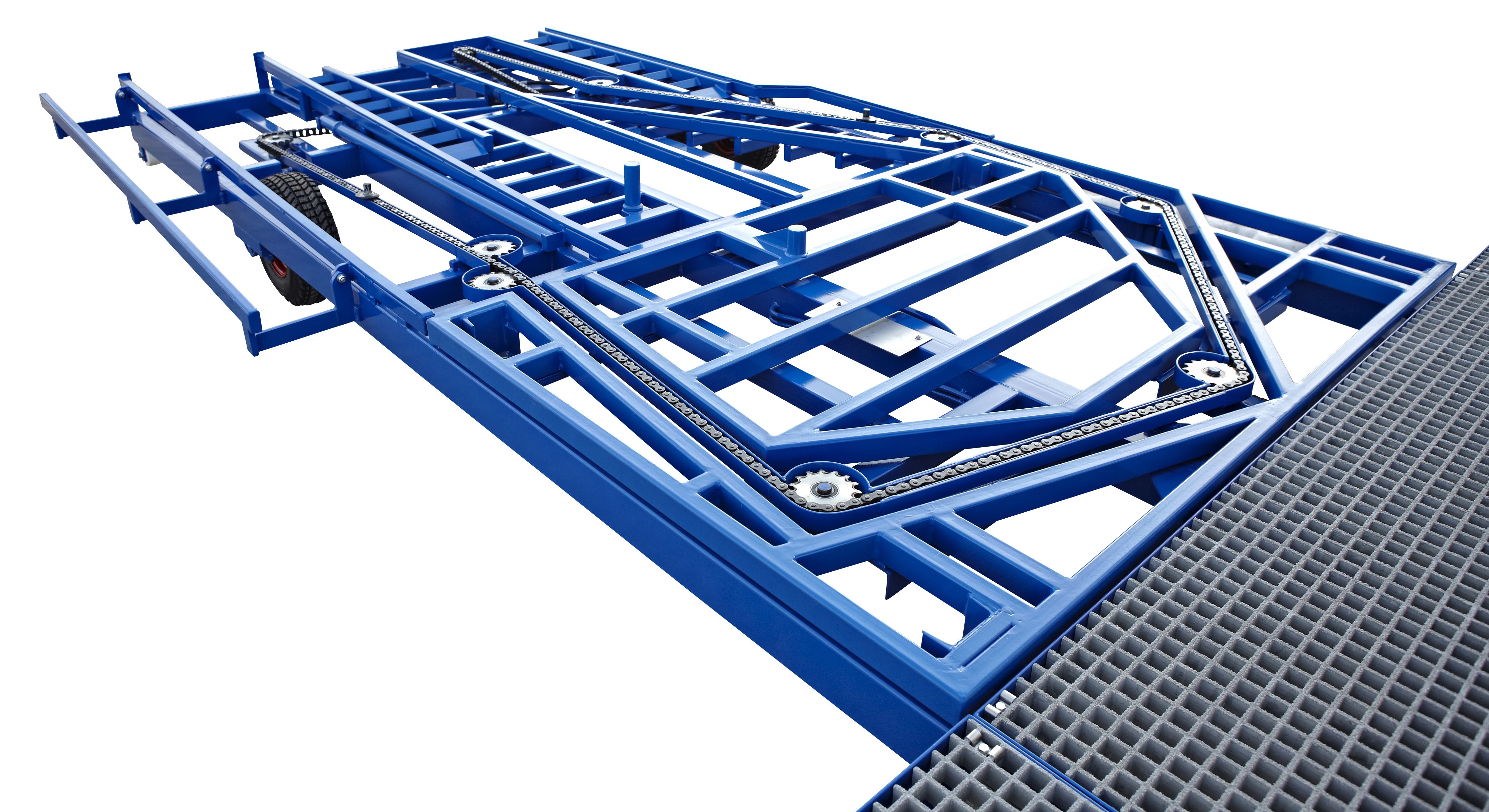

| Platform (Container Storage) | Length: 5,800 mm Width: 2,500 mm (w/o platform: 2,290 mm) |
Undercoating 1x, Lacquer 2x (Dark Blue) |
